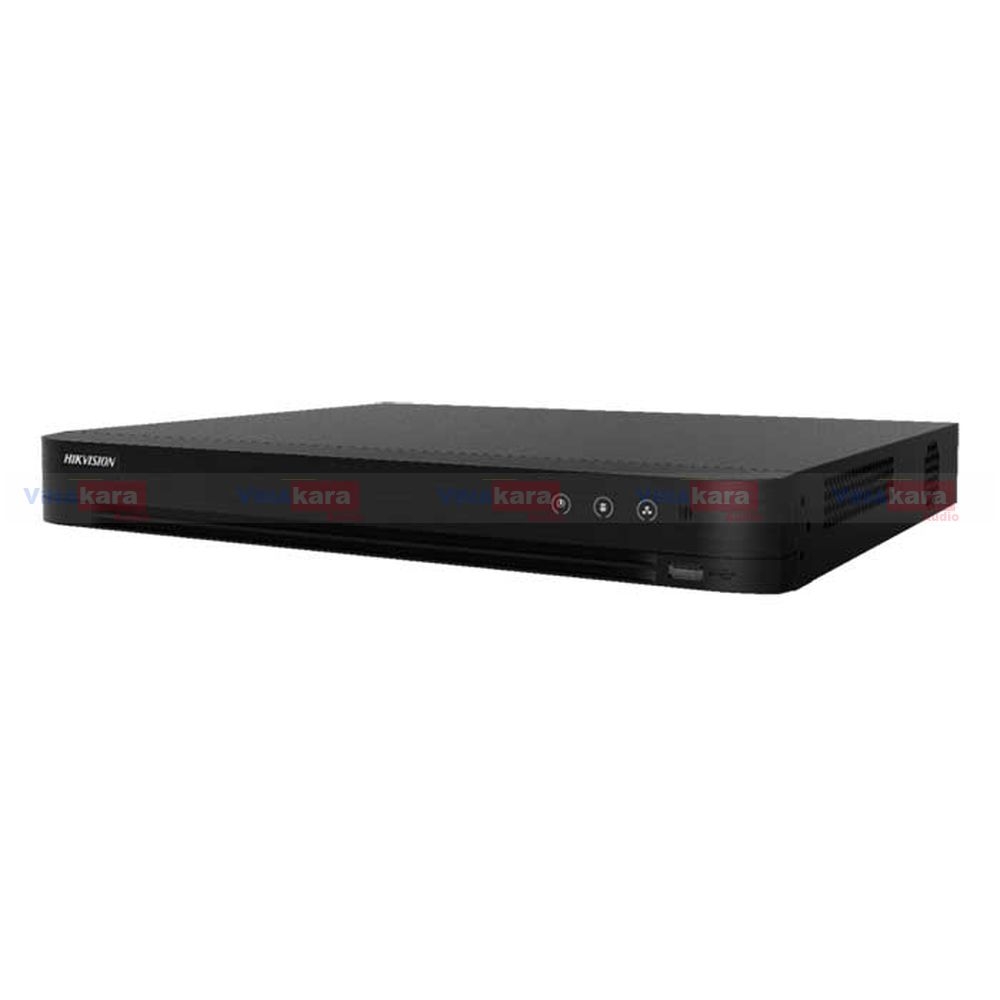

Đầu ghi HIKVISION iDS-7204HUHI-M1/S

Đầu Ghi Hình 4 Kênh Hikvision iDS-7204HUHI-M1/S Hỗ Trợ Camera 8MP

IP Video Input

• 2-ch (up to 6-ch)
• Up to 8 MP resolution
• Enhanced IP mode on:
• 4-ch (up to 8-ch), each up to 4 Mbps
• Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

• 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output
• HDMI: 1-ch, 2K (2560 × 1440)/60Hz,1920 × 1080/60Hz, 1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
• CVBS Input
• PAL/NTSC
• CVBS Output
• 1-ch, BNC (1.0 Vp-p, 75 Ω),
• resolution: PAL: 704 × 576, NTSC: 704 × 480
• Synchronous Playback 4-ch

HDTVI Input

• 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 8 MP signal input is only available for channel 1.

AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output

• 1-ch, RCA (Linear, 1 KΩ)
• Audio Input
• 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio
• 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Recording

• Video Compression
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution
• Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

Sub-stream:

• WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Video Bitrate

• 32 Kbps to 10 Mbps
• Dual-Stream
• Support
• Stream Type
• Video, Video & Audio
• Audio Compression G.711u
• Audio Bitrate 64 Kbps
• Network
• Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection 32

Network Interface

• 1, RJ45 10M/100M self-adaptive Ethernet interface
• Auxiliary Interface
• SATA
• 1 SATA interface
• Capacity
• Up to 10 TB capacity for each disk
• Serial Interface
• RS-485 (half-duplex)
• USB Interface
• Front panel: 1 × USB 2.0 Rear panel: 1 × USB 2.0

Alarm In/Out N/A

• General
• Power Supply
• 12 VDC
• Consumption
• ≤ 10 W

Working Temperature

• -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity
• 10% to 90%
• Dimension (W × D × H)
• 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• ≤ 1.16 kg (2.6 lb)
